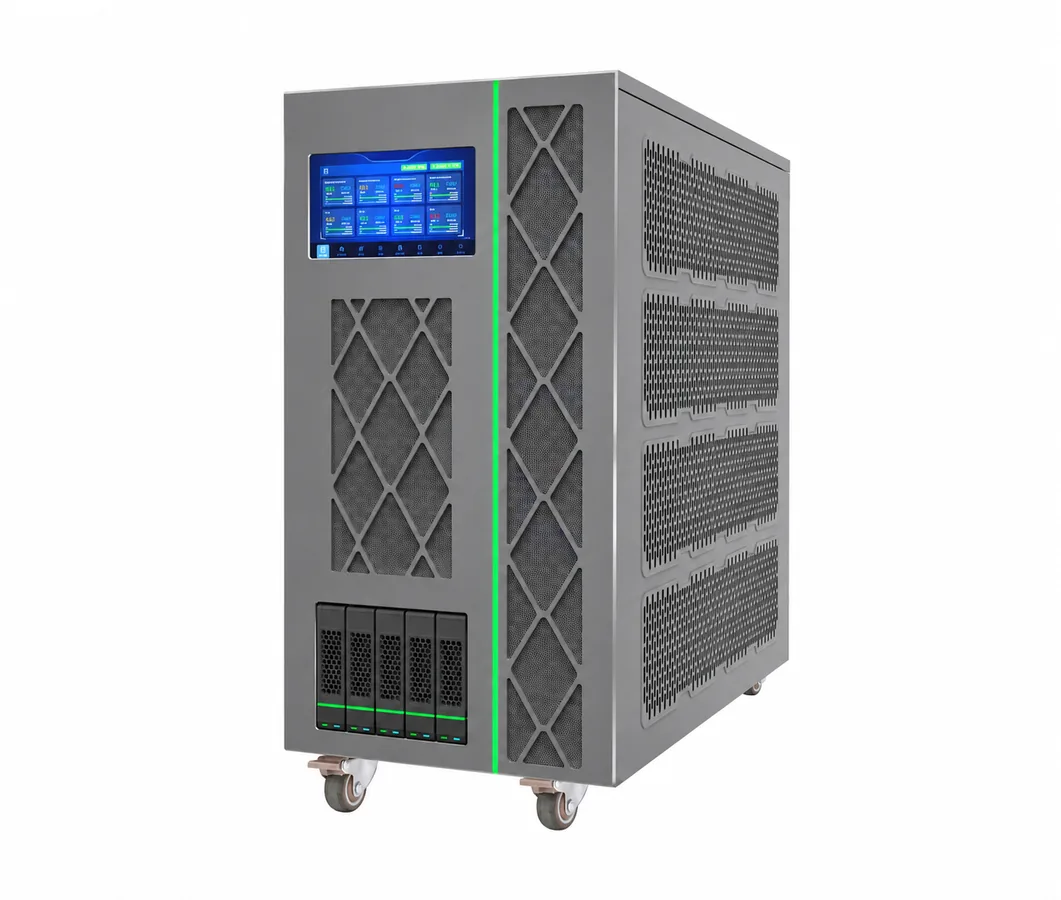

TFNEW ZT-4201-LC Tower Liquid-Cooled Workstation
Model: ZT-4201-LC · SKU: 0701006
ZT-4201-LC: an enterprise-grade tower liquid-cooled workstation, with 2x Intel Xeon 6530 processors, 1 TB RECC DDR5 memory, 4x RTX 5090 32GB GPUs and a custom liquid-cooling kit.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
ZT-4201-LC Tower Liquid-Cooled Workstation — Enterprise Platform
The ZT-4201-LC is an enterprise tower liquid-cooled workstation powered by 2x Intel Xeon 6530 processors (32 cores, 64 threads, 2.1 GHz), with 1 TB RECC DDR5 memory, 4x RTX 5090 32GB GPUs and a custom liquid-cooling kit.
High-Performance Compute
2x Intel Xeon 6530 with 4x RTX 5090 GPUs for demanding AI and rendering workloads.
Advanced Liquid Cooling
Custom liquid-cooling kit with CDU control center keeps GPUs stable under full load.
Enterprise Reliability
Redundant ATX power and IPMI2.0/Redfish management ensure stable operation.
Specifications
| Processor/Chipset | 2x Intel Xeon 6530, 32 cores 64 threads, 2.1 GHz |
|---|---|
| Memory | 16x RECC DDR5 64G 5600 MT/s, 1 TB total |
| Storage | SSD1: 1x SATA SSD 2.5" 960G; SSD2: 1x U.2 NVMe 3.84T |
| Power | 1x 3000W + 1x 2000W ATX |
| GPU | 4x RTX 5090 32GB |
| PCIe | 25Gb dual-port NIC + 2x 25Gb multimode optical modules |
| Network | Onboard: 2x RJ45 gigabit ports |
| Cooling | 4 silent fans + 4x 480mm radiators; custom liquid-cooling kit with radiator, water distributor, quick-release fittings, pump, tubing, CPU water block, GPU cold plate, CDU control center |
| Dimensions | Device: L636 x W300 x H570 mm; package: L849 x W835 x H502 mm |
| Management/Other | 7-inch LCD screen showing pressure, liquid flow rate, device temperature and fan speed; IPMI with ASPEED AST2600 controller, IPMI2.0/Redfish support; 1x RJ45 management port; supports Windows Server 2022 and Linux; operating temperature 5°C-35°C; suited for models below 70B parameters, Qwen 2.5/3.5, DeepSeek |
| SKU | 0701006 |
| Warranty | - |
| Lead time | - |
Applications
Built for Real Business Workloads
Use this platform as part of a complete enterprise AI infrastructure solution.
AI Training and Inference
Runs local models below 70B parameters, including Qwen 2.5/3.5 and DeepSeek.
Contact our team →Graphics Rendering
High-end RTX GPUs for professional 3D rendering and creative workloads.
Contact our team →Private Compute Infrastructure
Serves as a powerful workstation for research, engineering and enterprise teams.
Contact our team →Deployment
A Clear Deployment Path
Move from requirement discovery to a validated configuration and supported delivery.
Requirements and Specification Review
Confirm compute selection, GPU configuration, memory and facility environment.
Configuration and Compatibility Validation
Validate liquid cooling loop, thermal performance and full-load system stability.
Delivery and Technical Support
Provide factory test reports and full lifecycle technical support.
Resources
Project Resources
Request the current documents for the exact configuration your team is evaluating.
Product Datasheet
Review detailed technical specifications, dimensions and interface definitions.
Contact our team →Installation and Configuration Guide
Best practices for setup, liquid cooling commissioning and deployment.
Contact our team →Technical Consulting
Discuss customized solutions with TF NEW senior hardware engineers.
Contact our team →REQUEST A QUOTE
Get a Configuration and Quote for the ZT-4201-LC Tower Liquid-Cooled Workstation
Tell us about your required configuration scale and deployment timeline, and we will provide professional advice and a formal quotation.
