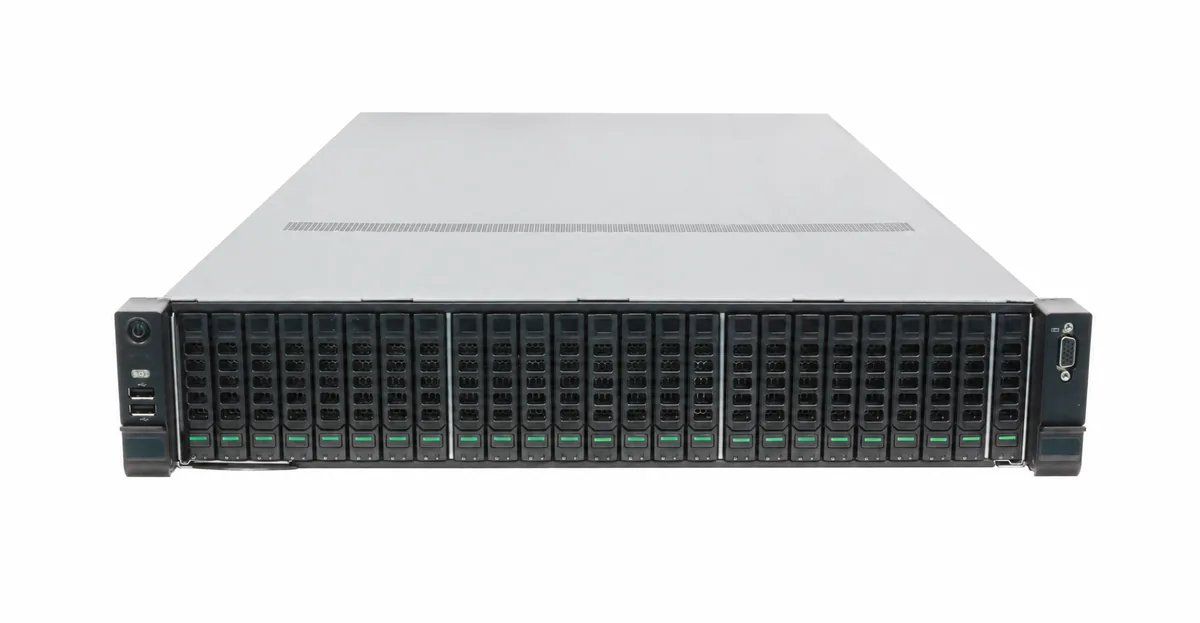

TFNEW ZN-2211 2U 25-Bay General Server
Model: ZN-2211 · SKU: 0603004
ZN-2211 is a 2U25 general-purpose server based on up to 2x 5th/4th Gen Intel Xeon Scalable processors, with 32 DDR5 memory slots (up to 5600 MT/s), delivering ultra-high compute power and strong expandability, widely used in big data, cloud computing and distributed storage.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
ZN-2211 — Enterprise Server Platform
The ZN-2211 is an enterprise 2U25 general-purpose server powered by 2x 5th/4th Gen Intel Xeon Scalable processors, with 32 DDR5 slots up to 5600 MT/s and up to 26x 2.5-inch storage bays.
High-Density Computing
Dual 5th/4th Gen Xeon Scalable processors deliver enterprise-grade compute performance.
Flexible Storage Expansion
26x 2.5-inch SAS/SATA/NVMe bays for elastic scaling of business data.
Enterprise Reliability
1+1 redundant power, N+1 fans and DC-SCM 2.0 management ensure stable 7x24 operation.
Specifications
| Product Model | 2U25 general-purpose server |
|---|---|
| Processor | 2x 5th/4th Gen Intel Xeon Scalable processors |
| Chipset | Intel C741 |
| Memory | 32x DDR5 slots, up to 5600 MT/s |
| Storage | Up to 24x 2.5-inch SAS/SATA/NVMe + 2x 2.5-inch SAS/SATA/NVMe |
| RAID Support | SAS4.0/SATA3.0, RAID0/1/10/5/50/6/60, cache super-capacitor protection |
| Network | Onboard 2x OCP 3.0 NIC slots, supports 1/10/25/100/200 Gb NICs and smart NICs |
| PCIe Expansion | Up to 10 standard expansion slots, PCIe 5.0 x16 capable |
| BMC | DC-SCM 2.0 management module with BMC AST2600 chip, IPMI2.0/Redfish support |
| Fans | 6 hot-swap fans, N+1 redundant |
| Power | 2x hot-swap 1300W/1600W/2000W/2600W/2700W/3200W CRPS standard power supplies, 1+1 redundant |
| Environment | 5°C-35°C (operating temperature support varies by configuration) |
| Dimensions | 87 mm (H) x 447.4 mm (W) x 799 mm (D) |
| SKU | 0603004 |
| Warranty | - |
| Lead time | - |
Applications
Built for Real Business Workloads
Use this platform as part of a complete enterprise AI infrastructure solution.
Cloud Computing
High-density compute nodes for private and public cloud infrastructure.
Contact our team →Big Data and Distributed Storage
High-capacity storage and compute for big data analytics and distributed storage clusters.
Contact our team →Virtualization and Hyper-Converged
Serves as the foundation for virtualization and hyper-converged platforms.
Contact our team →Deployment
A Clear Deployment Path
Move from requirement discovery to a validated configuration and supported delivery.
Requirements and Specification Review
Confirm key parameters such as compute selection, power consumption, storage and facility environment.
Configuration and Compatibility Validation
Validate PCIe topology, thermal airflow and full-load system stability.
Delivery and Technical Support
Provide factory test reports, environment pre-installation and full lifecycle technical support.
Resources
Project Resources
Request the current documents for the exact configuration your team is evaluating.
Product Datasheet
Review detailed technical specifications, dimensions and interface definitions.
Contact our team →Installation and Configuration Guide
Best practices for rack mounting, cabling and data center deployment.
Contact our team →Technical Consulting
Discuss customized solutions with TF NEW senior hardware engineers.
Contact our team →REQUEST A QUOTE
Get a Configuration and Quote for the ZN-2211
Tell us about your required configuration scale and deployment timeline, and we will provide professional advice and a formal quotation.
