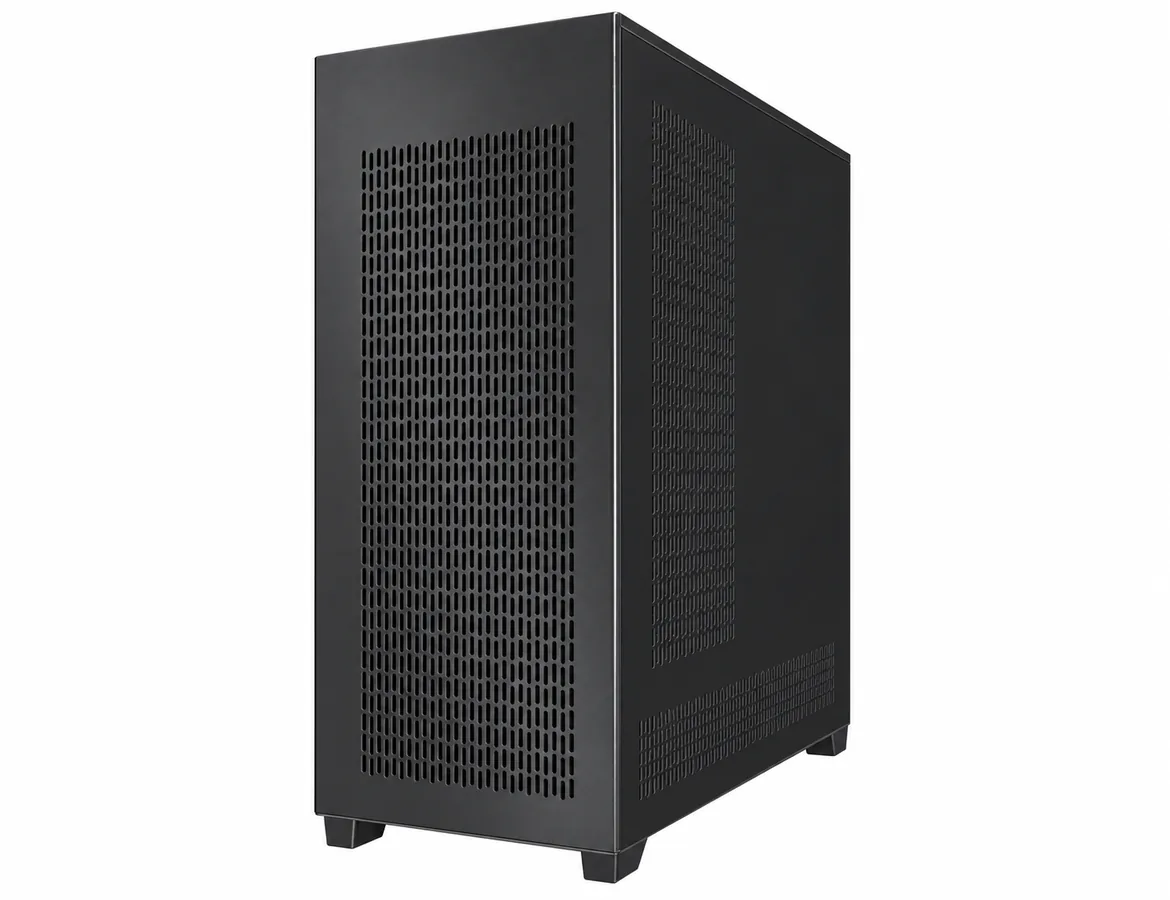

TFNEW W297G4-Q Liquid-Cooled Workstation
Model: W297G4-Q · SKU: 0701004
W297G4-Q: an enterprise liquid-cooled workstation supporting 2x 3rd Gen Intel Xeon Scalable processors (IceLake-SP, TDP 270W), with 16 DDR4 RECC memory slots (up to 2 TB) and support for 4 liquid-cooled GPU cards, with cold-plate liquid cooling.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
W297G4-Q Liquid-Cooled Workstation — Enterprise Server Platform
The W297G4-Q is powered by 3rd Gen Intel Xeon Scalable processors (IceLake-SP, max TDP 270W), with 16 DDR4 memory slots up to 2 TB and support for 4 liquid-cooled GPU cards.
High-Density Computing
Powered by 3rd Gen Intel Xeon Scalable processors to meet enterprise-grade workload requirements.
Flexible Storage Expansion
DDR4 RECC up to 2 TB and flexible storage bays for elastic scaling of business data.
Enterprise Reliability
Cold-plate liquid cooling with dual-pump redundancy ensures stable 7x24 operation.
Specifications
| Model | W297G4-Q |
|---|---|
| Chassis | Tower server (cold-plate liquid-cooled workstation) |
| Processor | 3rd Gen Intel Xeon Scalable processors (IceLake-SP series), up to 2x, max TDP 270W |
| System Bus | UPI up to 11.2 GT/s |
| Memory | 16 DIMM slots, 3200/2933 MHz DDR4 RECC, up to 2 TB RECC |
| Storage Controller | Onboard SATA controller, RAID 0/1/5/10 support; optional standalone RAID card |
| PCIe Expansion Slots | 2x PCIe 4.0 x8 + 4x PCIe 4.0 x16 |
| Network | Onboard dual gigabit Ethernet ports |
| I/O Ports | Front: 2x USB2.0; Rear: 1x serial port, 1x VGA, 4x USB3.0, 2x RJ45 gigabit network ports, 1x dedicated remote management port |
| BMC Management | ASPEED AST2600 BMC + OPENBMC management |
| GPU Support | 4x liquid-cooled GPU cards (e.g. NVIDIA 4090, L20, etc.) |
| Power | Standard ATX power supply, optional 1600W/2000W/2600W/3000W |
| Environment | Operating temperature 10°C ~ 30°C, relative humidity 20% ~ 80% (non-condensing) |
| Liquid Cooling | One-to-two CPU liquid cooling radiator, hot/cold split, dual-CPU temperature difference <1°C; ceramic bearing centrifugal pump with dual-pump redundancy |
| SKU | 0701004 |
| Warranty | - |
| Lead time | - |
Applications
Built for Real Business Workloads
Use this platform as part of a complete enterprise AI infrastructure solution.
AI Training and Inference
A high-performance compute node supporting private model training, inference and concurrent workloads.
Contact our team →Private Compute Infrastructure
Serves as the compute foundation of enterprise data centers for virtualization and hyper-converged scenarios.
Contact our team →HPC and Data-Intensive Workloads
High-throughput I/O and low-latency interconnect for scientific computing, engineering simulation and data analytics.
Contact our team →Deployment
A Clear Deployment Path
Move from requirement discovery to a validated configuration and supported delivery.
Requirements and Specification Review
Confirm key parameters such as compute selection, power consumption, storage and facility environment.
Configuration and Compatibility Validation
Validate PCIe topology, thermal airflow and full-load system stability.
Delivery and Technical Support
Provide factory test reports, environment pre-installation and full lifecycle technical support.
