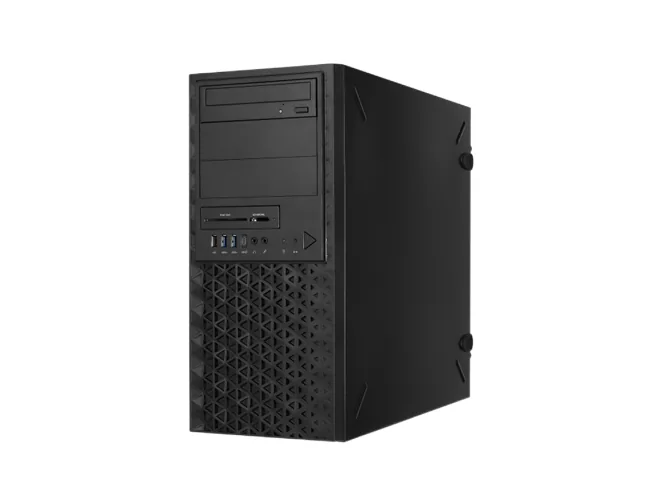

TFNEW W190G6 Tower Workstation Intel Core i9
Model: W190G6 · SKU: 0602001
W190G6: an enterprise workstation powered by Intel 12th/13th Gen Core processors, with 4 DDR5 DIMM slots (up to 128 GB) and support for 1 full-height dual-width graphics card (NVIDIA Quadro RTX series), in a tower form factor.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
W190G6 Workstation — Enterprise Server Platform
The W190G6 is powered by Intel 12th/13th Gen Core processors, with 4 DDR5 DIMM slots up to 128 GB and 3x 3.5'' + 1x 2.5'' drive bays.
High-Density Computing
Powered by Intel 12th/13th Gen Core processors to meet demanding professional workloads.
Flexible Storage Expansion
DDR5 up to 128 GB and 3x 3.5'' + 1x 2.5'' drive bays for elastic scaling of business data.
Enterprise Reliability
Enterprise-grade design with flexible power options ensures stable 7x24 operation.
Specifications
| Model | W190G6 |
|---|---|
| Chassis | Black tower |
| Processor | 1 processor socket, supports Intel® 12th Gen Core™ i9/i7/i5/i3 and 13th Gen Core™ i9/i7/i5 processors |
| Chipset | Intel W680 Chipset |
| Memory | 4 DIMM slots, Dual Channel DDR5 4400/3600 MHz, ECC/non-ECC UDIMM, up to 128 GB |
| Storage | 3x 3.5'' + 1x 2.5'' internal drive bays |
| Storage Controller | 8x SATA3 6Gb/s ports; 1x M.2_1 (2280, PCIe Gen4 x4); 1x M.2_2 (2280, PCIe Gen3 x4); 1x M.2_3 (22110, PCIe Gen4 x4) |
| PCIe Expansion Slots | A: PCIe x16 (Gen5 x16/x8 link); B: PCIe x16 (Gen5 x0/x8 link); C: PCIe x16 (Gen4 x4 link); D: PCIe x16 (Gen3 x4 link) |
| GPU Support | Up to 1 full-height dual-width graphics card, e.g. NVIDIA® Quadro RTX™ series |
| Network | 2x integrated 2.5Gbps ports (Intel® I225-LM chip) |
| I/O Ports | Front: 1x USB 3.2 Gen2x2, 2x USB 3.2 Gen1, 1x USB 2.0; Rear: 2x USB 3.2 Gen2, 4x USB 3.2 Gen1, 1x HDMI, 1x DisplayPort, 1x DVI-D, 1x VGA, 2x RJ45, audio I/O |
| Power | Standard 750W single power supply, optional 1250W/1650W |
| Operating System | Windows 11 Pro for Workstation |
| Dimensions | 423 mm x 190 mm x 435 mm (D x W x H) |
| Operating Temperature | 10°C ~ 35°C |
| SKU | 0602001 |
| Warranty | - |
| Lead time | - |
