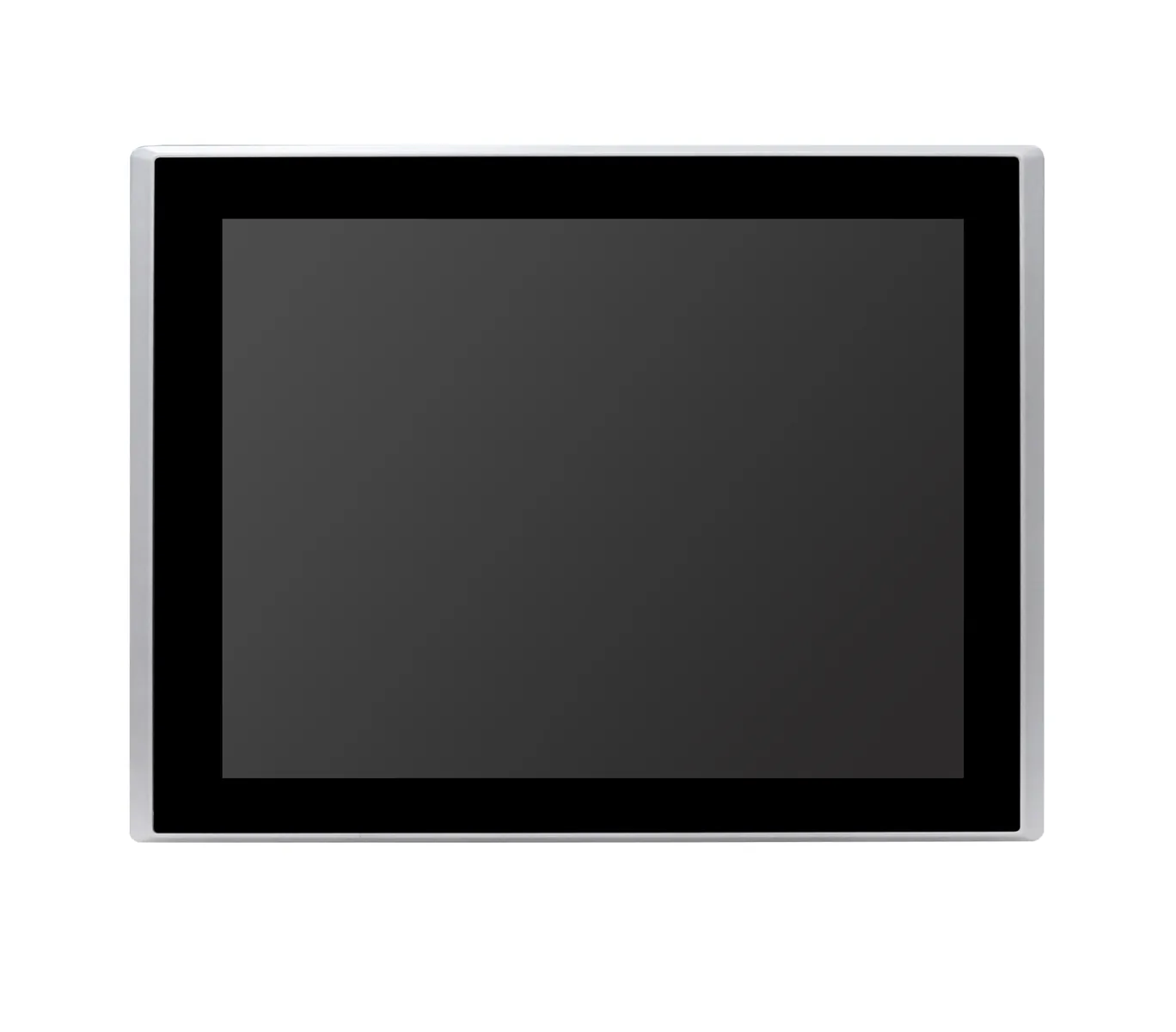

TFNEW UTC-1900 Industrial Touch Monitor
Model: UTC-1900 · SKU: 0202003
UTC-1900: an enterprise-grade industrial touch monitor with a 1280x1024 TFT-LCD display, 250 cd/m² brightness, five-wire resistive / 10-point capacitive touch screen, and IP65 front panel protection.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
UTC-1900 Industrial Touch Monitor — Enterprise Platform
The UTC-1900 is an enterprise-grade industrial touch monitor featuring a 1280x1024 TFT-LCD display, 250 cd/m² brightness, five-wire resistive / 10-point capacitive touch screen and IP65 front panel protection.
Industrial-Grade Design
Aluminum/SGCC housing with IP65 front panel protection for demanding industrial environments.
Wide-Temperature Operation
Operates from 0°C to 60°C with 5~500 Hz vibration resistance for reliable 7x24 uptime.
Flexible Mounting
Supports panel, wall, desktop and VESA75 arm mounting for diverse deployment scenarios.
Specifications
| Processor/Chipset | Not provided |
|---|---|
| Memory | Not provided |
| Storage | Not provided |
| GPU | Not provided |
| PCIe | Not provided |
| Power | 12V/3A |
| Fans | Not provided |
| Network | Not provided |
| Dimensions | 440x364x45 mm |
| Weight | 2.96 KG |
| Display Interface | VGA, HDMI |
| Housing Material | Aluminum, SGCC |
| Supported Systems | Windows® 7/8/10, WES 7, Linux |
| LCD Type | TFT-LCD |
| Resolution | 1280x1024 |
| Max Colors | 16.7M |
| Brightness | 250 cd/m² |
| Viewing Angle (CR≥10) | -89~89° (H), -89~89° (V) |
| Backlight | LED |
| Backlight Lifetime | 30,000 hours |
| Contrast Ratio | 1000:1 |
| Touch Screen Type | Five-wire resistive / 10-point capacitive |
| Touch Screen Interface | USB2.0 |
| Transmittance | >85% |
| Service Life | 10 million clicks at 250 g force / hardness 7H |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |
| Storage Humidity | 10~90% @30°C, non-condensing |
| Protection Rating | IP65 front panel |
| Vibration Resistance | 5~500 Hz, 1 Grms (operating, random) |
| SKU | 0202003 |
| Warranty | - |
| Lead time | - |
Applications
Built for Real Business Workloads
Use this platform as part of a complete enterprise AI infrastructure solution.
Industrial Automation
HMI terminals for production lines, machine control and process visualization.
Contact our team →Edge and Facility Deployment
Robust touch display for kiosks, monitoring rooms and facility management.
Contact our team →Data-Intensive Operations
Clear high-brightness display for data dashboards and operational monitoring.
Contact our team →Deployment
A Clear Deployment Path
Move from requirement discovery to a validated configuration and supported delivery.
Requirements and Specification Review
Confirm mounting method, touch type, display size and operating environment.
Configuration and Compatibility Validation
Validate display interfaces, supported operating systems and installation layout.
Delivery and Technical Support
Provide factory test reports and full lifecycle technical support.
Resources
Project Resources
Request the current documents for the exact configuration your team is evaluating.
Product Datasheet
Review detailed technical specifications, dimensions and interface definitions.
Contact our team →Installation and Configuration Guide
Best practices for mounting, cabling and deployment.
Contact our team →Technical Consulting
Discuss customized solutions with TF NEW senior hardware engineers.
Contact our team →REQUEST A QUOTE
Get a Configuration and Quote for the UTC-1900 Industrial Touch Monitor
Tell us about your required configuration scale and deployment timeline, and we will provide professional advice and a formal quotation.
