General-Purpose Servers

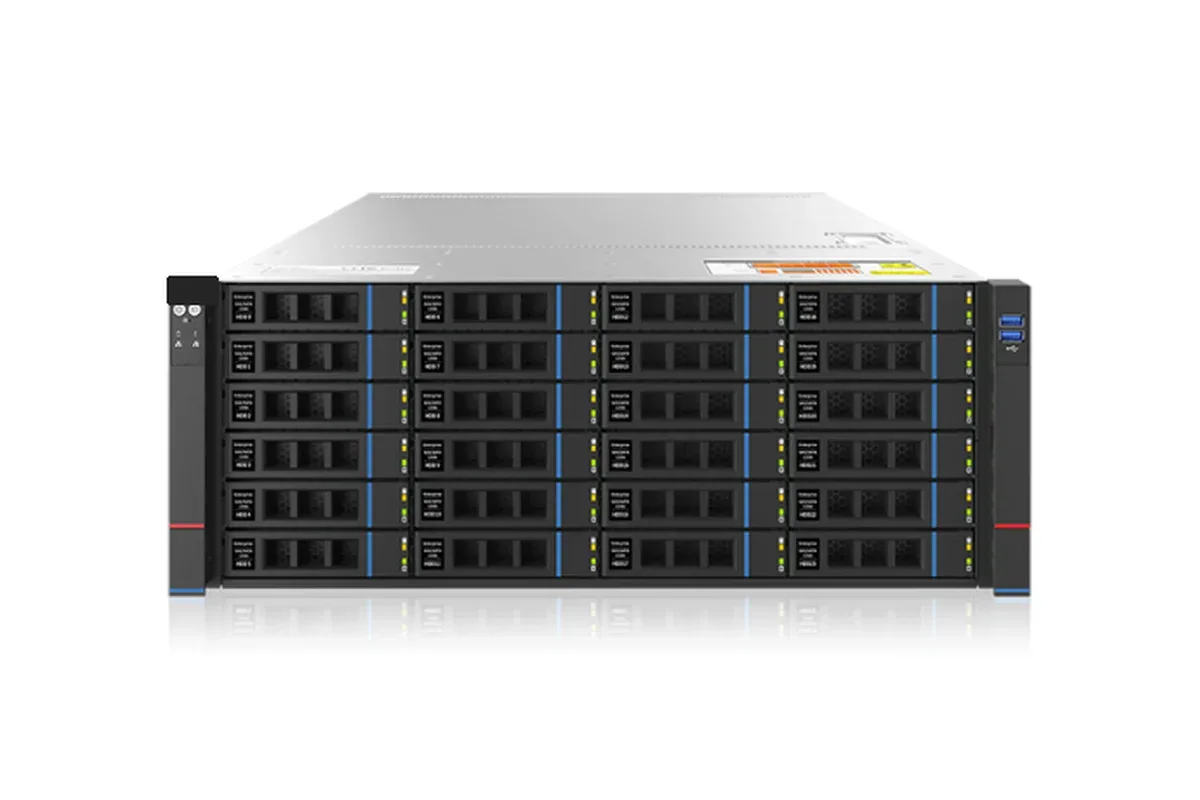

TFNEW SR401-D24RE-G2 4U AMD Storage Server
Model: SR401-D24RE-G2 · SKU: 0603014
4U AMD dual-socket storage server with EPYC 9004 processors, 24 DDR5 slots, twenty-four front hot-swap bays and PCIe 5.0 expansion.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
TFNEW SR401-D24RE-G2 4U AMD Storage Server
4U AMD dual-socket storage server with EPYC 9004 processors, 24 DDR5 slots, twenty-four front hot-swap bays and PCIe 5.0 expansion.
Compute Performance
2 x AMD EPYC 9004 (Genoa) processors
Storage and Expansion
24 front hot-swappable 3.5/2.5-inch SAS/SATA drives; optional 4 rear drives; 8 x PCIe 5.0 plus up to 2 x PCIe 4.0 expansion slots
Redundant Power
800/1300/1600/2000/2200 W hot-swappable redundant power options
Specifications
| Model | SR401-D24RE-G2 |
|---|---|
| Form Factor | 4U rackmount dual-socket storage server |
| Processor | 2 x AMD EPYC 9004 (Genoa) processors |
| GPU | Up to 2 dual-width full-length full-height GPUs, depending on configuration |
| Memory | 24 DDR5 RDIMM slots; 4400/4800 MHz |
| Storage | 24 front hot-swappable 3.5/2.5-inch SAS/SATA drives; optional 4 rear drives |
| Network | 2 x onboard 1GbE RJ45; 1 dedicated management RJ45 |
| I/O Interfaces | Front: 2 x USB 3.0; rear: VGA, serial, 2 x USB 3.0, management and 2 x RJ45 |
| Expansion | 8 x PCIe 5.0 plus up to 2 x PCIe 4.0 expansion slots |
| Power | 800/1300/1600/2000/2200 W hot-swappable redundant power options |
| Dimensions | 798 x 433.4 x 176.5 mm (D x W x H) |
| Applications | Cloud computing, virtualization, big-data processing, HPC and distributed storage |
| SKU | 0603014 |
| Warranty | - |
| Lead Time | - |
| SKU | 0603014 |
| Warranty | - |
| Lead time | - |
Applications
Applications
Cloud computing, virtualization, big-data processing, HPC and distributed storage
AI and Data Processing
Cloud computing, virtualization, big-data processing, HPC and distributed storage
Contact our team →Deployment
Deployment
Confirm CPU, expansion cards, power and facility requirements against the project configuration.
Requirements Review
Confirm CPU, memory, storage and expansion needs.
Compatibility Check
Review network, power and cooling conditions.
Delivery and Testing
Confirm the configuration and test under load before delivery.
Resources
Resources
Configuration-specific documentation is available on request.
REQUEST A QUOTE
Request a SR401-D24RE-G2 Configuration and Quote
Share target configuration, quantity and deployment conditions so our team can confirm specifications and pricing.
