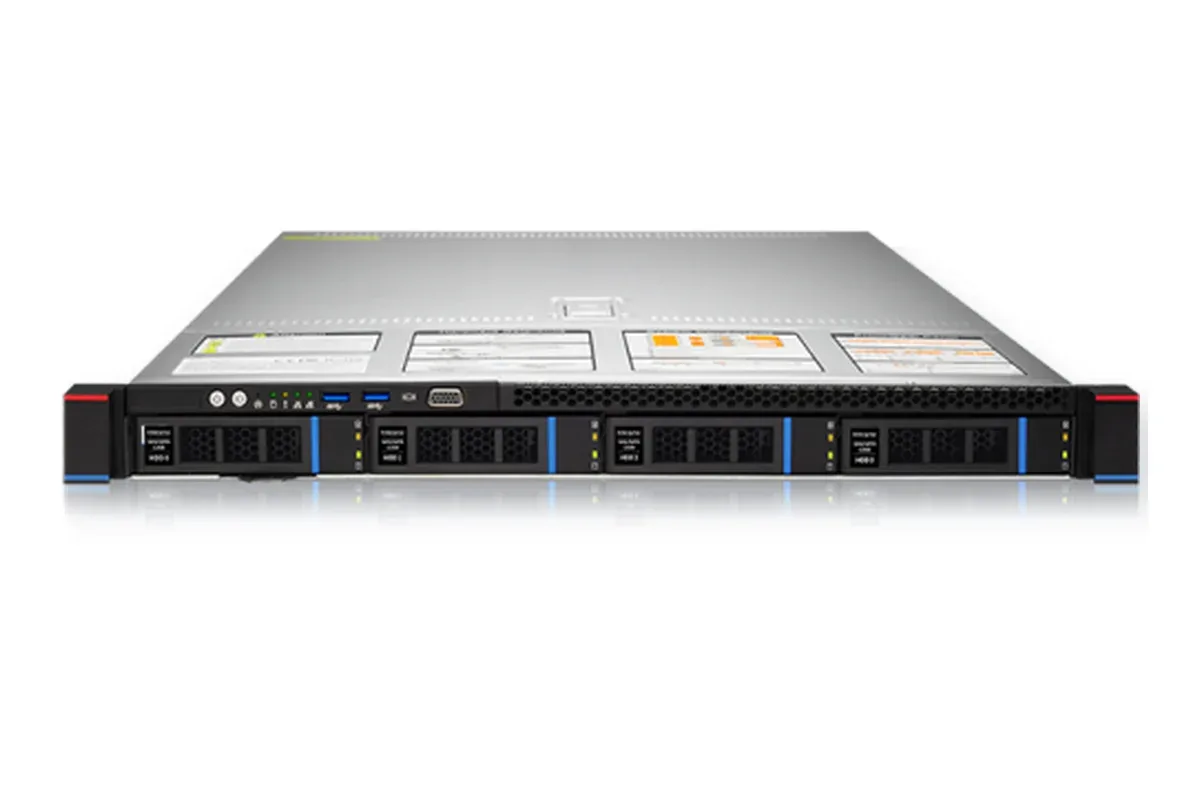

TFNEW SL101-D04R-G3 1U Dual-Socket Server
Model: SL101-D04R-G3 · SKU: 0603036
1U dual-socket server supporting 3rd Gen Intel Xeon Scalable processors, 32 DDR4 slots, four front 3.5/2.5-inch SAS/SATA hot-swap bays and dual PCIe expansion.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
TFNEW SL101-D04R-G3 1U Dual-Socket Server
1U dual-socket server supporting 3rd Gen Intel Xeon Scalable processors, 32 DDR4 slots, four front 3.5/2.5-inch SAS/SATA hot-swap bays and dual PCIe expansion.
Compute Performance
1 or 2 3rd Gen Intel Xeon Scalable Ice Lake processors; up to 205 W TDP
Storage and Expansion
4 front hot-swappable 3.5/2.5-inch SAS/SATA drives; 2 full-height PCIe 4.0 x16 slots; 1 OCP 3.0 slot
Redundant Power
550/800/1300/1600/2000/2200 W redundant power options
Specifications
| Model | SL101-D04R-G3 |
|---|---|
| Form Factor | 1U rackmount dual-socket server |
| Processor | 1 or 2 3rd Gen Intel Xeon Scalable Ice Lake processors; up to 205 W TDP |
| GPU | PCIe expansion supports accelerator cards according to project configuration |
| Memory | 32 DDR4 RDIMM slots; 2666/2933/3200 MT/s |
| Storage | 4 front hot-swappable 3.5/2.5-inch SAS/SATA drives |
| Network | 2 x onboard 1GbE RJ45; 1 OCP 3.0 slot; 1 dedicated management RJ45 |
| I/O Interfaces | Front: VGA and 2 x USB 3.0; rear: VGA, serial, 2 x USB 3.0, management and 2 x RJ45 |
| Expansion | 2 full-height PCIe 4.0 x16 slots; 1 OCP 3.0 slot |
| Power | 550/800/1300/1600/2000/2200 W redundant power options |
| Dimensions | 748 x 433.4 x 43.6 mm (D x W x H) |
| Applications | Cloud computing, virtualization, big-data processing, enterprise applications and distributed storage |
| SKU | 0603036 |
| Warranty | - |
| Lead Time | - |
| SKU | 0603036 |
| Warranty | - |
| Lead time | - |
Applications
Applications
Cloud computing, virtualization, big-data processing, enterprise applications and distributed storage
AI and Data Processing
Cloud computing, virtualization, big-data processing, enterprise applications and distributed storage
Contact our team →Deployment
Deployment
Confirm CPU, expansion cards, power and facility requirements against the project configuration.
Requirements Review
Confirm CPU, memory, storage and expansion needs.
Compatibility Check
Review network, power and cooling conditions.
Delivery and Testing
Confirm the configuration and test under load before delivery.
Resources
Resources
Configuration-specific documentation is available on request.
REQUEST A QUOTE
Request a SL101-D04R-G3 Configuration and Quote
Share target configuration, quantity and deployment conditions so our team can confirm specifications and pricing.
