Rack Servers

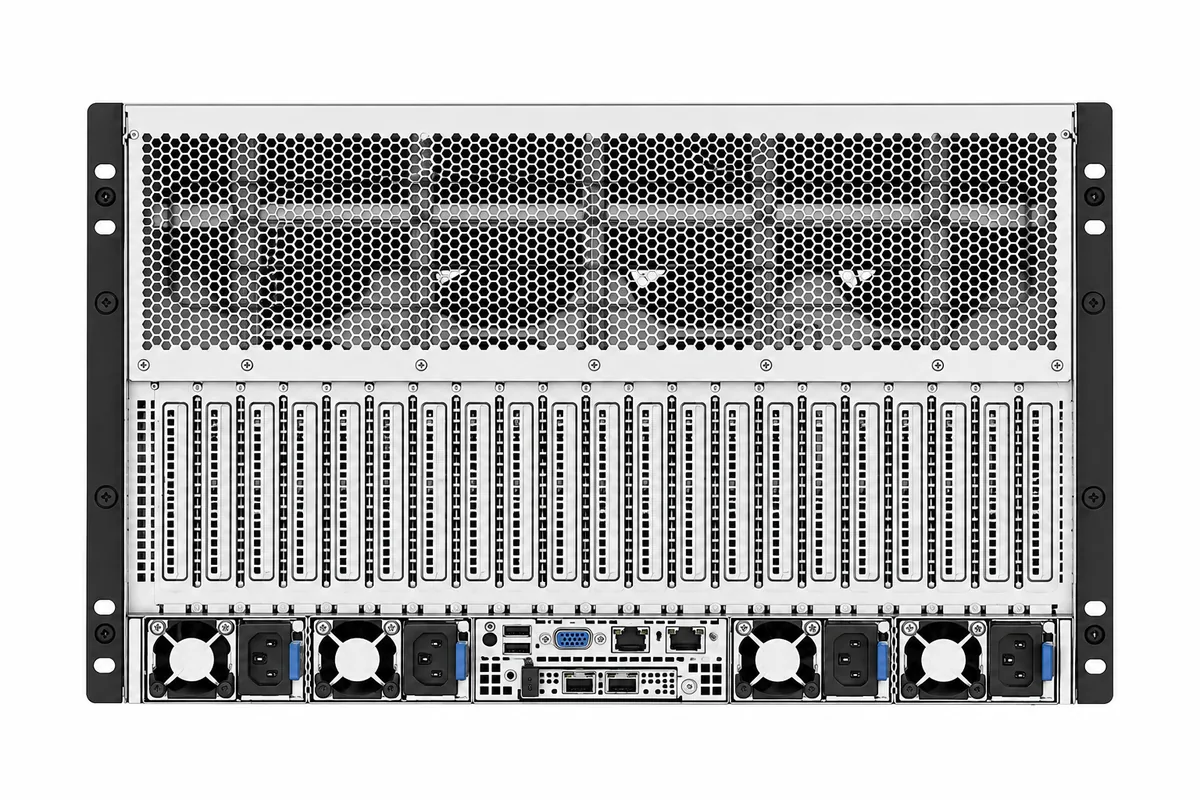

TFNEW S778E5 7U GPU Server for AI Computing
Model: S778E5 · SKU: 0102012
S778E5: an enterprise GPU server supporting 2x AMD EPYC 9004/9005 series CPUs (TDP up to 500W), with 24 DDR5 DIMM slots (6400 MT/s) and up to 8 GPU cards (600W per card), a 7U rackmount server.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
S778E5 GPU Server — Enterprise Server Platform
The S778E5 supports 2x AMD EPYC 9004/9005 series CPUs (TDP up to 500W), with 24 DDR5 DIMM slots and up to 8 GPU cards (up to 600W per card).
High-Density Computing
Powered by AMD EPYC 9004/9005 series CPUs to meet enterprise-grade workload requirements.
Flexible Storage Expansion
8 front LFF hot-swap drive bays and 24 DDR5 DIMM slots for elastic scaling of business data.
Enterprise Reliability
Isolated CPU/GPU cooling and efficient thermal design ensure stable 7x24 operation.
Specifications
| Model | S778E5 |
|---|---|
| Chassis | 7U rackmount server |
| GPU-CPU Scheme | GPU-CPU passthrough; fan-card configuration (front GPU board + rear GPU board) and turbine-card configuration (rear GPU board only) |
| Processor | Supports 2x AMD EPYC 9004/9005 series CPUs, TDP up to 500W |
| Memory | 24x DDR5, RDIMM/LRDIMM, 1DPC, up to 6400 MT/s |
| Storage | 8x front LFF hot-swap drive bays, optional 2/4x U.2 drives mixed; 1x M.2 slot (2280 & 22110, PCIe 3.0 x4) |
| PCIe Expansion | Up to 11 standard PCIe 5.0 slots; optional 1x OCP3.0 (PCIe 5.0 x8 link) slot |
| GPU Support | Up to 8 quad-width/triple-width/dual-width GPU cards, up to 600W per card |
| Network | No onboard business network ports, optional OCP slot, optional OCP network card or standard PCIe network card |
| BMC | Integrated BMC management chip AST2600, IPMI2.0, Redfish, SOL, KVM, virtual media support; 1x 1Gbps RJ45 dedicated management port |
| Fans | CPU compute module and GPU compute module isolated cooling, 12x 8056 fans total, hot-swap, intelligent speed control |
| SKU | 0102012 |
| Warranty | - |
| Lead time | - |
Applications
Built for Real Business Workloads
Use this platform as part of a complete enterprise AI infrastructure solution.
AI Training and Inference
A high-performance compute node supporting private model training, inference and concurrent workloads.
Contact our team →Private Compute Infrastructure
Serves as the compute foundation of enterprise data centers for virtualization and hyper-converged scenarios.
Contact our team →HPC and Data-Intensive Workloads
High-throughput I/O and low-latency interconnect for scientific computing, engineering simulation and data analytics.
Contact our team →Deployment
A Clear Deployment Path
Move from requirement discovery to a validated configuration and supported delivery.
Requirements and Specification Review
Confirm key parameters such as compute selection, power consumption, storage and facility environment.
Configuration and Compatibility Validation
Validate PCIe topology, thermal airflow and full-load system stability.
Delivery and Technical Support
Provide factory test reports, environment pre-installation and full lifecycle technical support.
Resources
Project Resources
Request the current documents for the exact configuration your team is evaluating.
Product Datasheet
Review detailed technical specifications, dimensions and interface definitions.
Contact our team →Installation and Configuration Guide
Best practices for rack mounting, cabling and data center deployment.
Contact our team →Technical Consulting
Discuss customized solutions with TF NEW senior hardware engineers.
Contact our team →REQUEST A QUOTE
Get a Configuration and Quote for the S778E5 GPU Server
Tell us about your required configuration scale and deployment timeline, and we will provide professional advice and a formal quotation.
