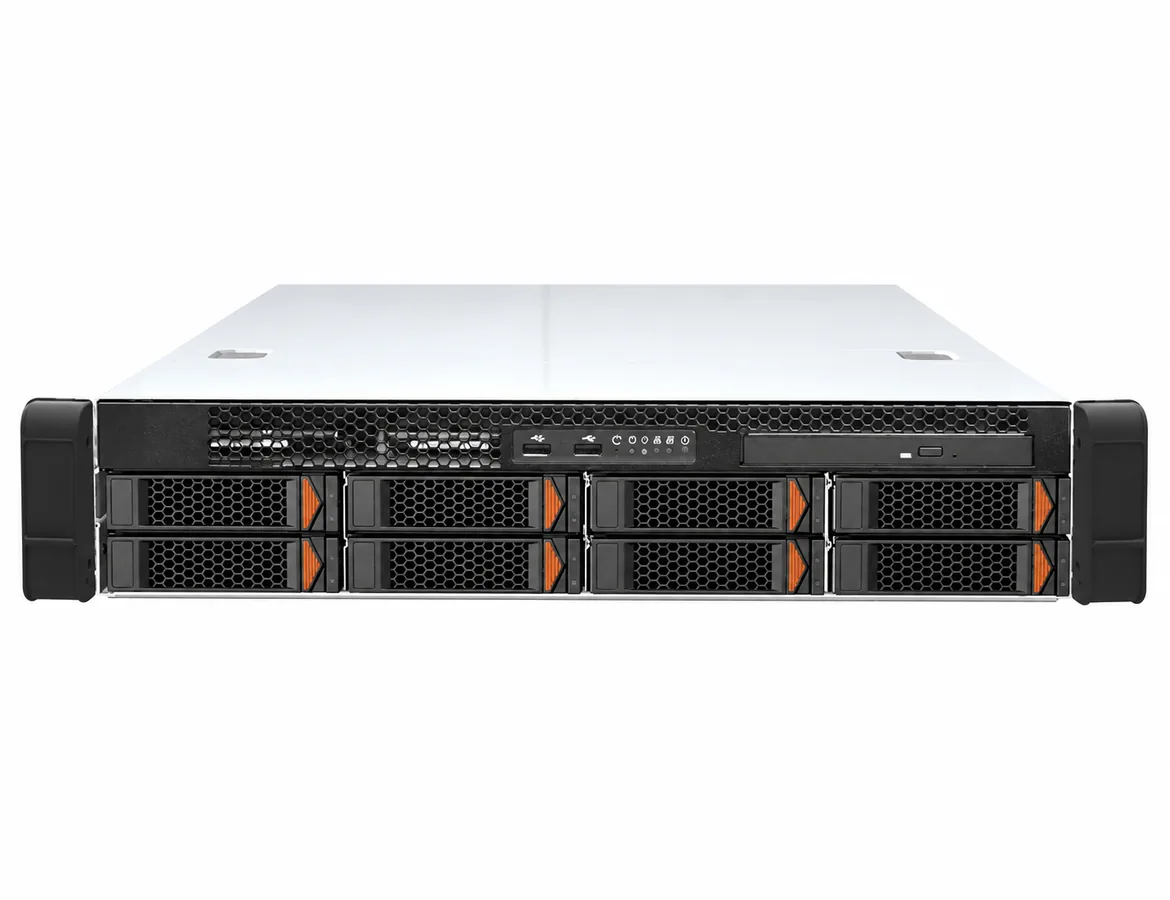

TFNEW S327Q3 2U Single-Socket Xeon D Rack Server
Model: S327Q3 · SKU: 0102002
S327Q3: an enterprise server powered by an Intel® Xeon D-1581 (1.8 GHz / 24M / 16C / 32T / 65W) SoC, in a 2U single-socket rackmount design, with 4 DDR4 ECC DIMM slots (up to 128 GB) and 8 hot-swap drive bays, suitable for hyper-converged edge and lightweight deployment scenarios.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
S327Q3 Server — Enterprise Server Platform
The S327Q3 is powered by an Intel® Xeon D-1581 (1.8 GHz / 24M / 16C / 32T / 65W) SoC, with 4 DIMM slots of DDR4 ECC (up to 128 GB) and 8x front hot-swap 3.5"/2.5" data drive bays.
High-Density Computing
Powered by the Intel® Xeon D-1581 SoC to meet enterprise-grade workload requirements.
Flexible Storage Expansion
8x hot-swap drive bays and DDR4 ECC up to 128 GB for elastic scaling of business data.
Enterprise Reliability
Integrated remote management ensures stable 7x24 operation.
Specifications
| Model | S327Q3 |
|---|---|
| Chassis | 2U rackmount (single socket) |
| Processor | Intel® Xeon D-1581 (1.8 GHz / 24M / 16C / 32T / 65W), SoC process |
| Chipset | System on Chip (integrated SoC) |
| Memory | 4 DIMM slots, DDR4 ECC, standard 8 GB, up to 128 GB |
| Storage Controller | Integrated SATA controller |
| Local Storage | 8x front hot-swap 3.5"/2.5" SATA/SAS (optional) data drive bays; optional 2x internal 2.5" SSD system drives |
| PCIe Expansion Slots | 2x PCIe 3.0 x8; 1x M.2 2242/2280 NVMe PCIe 2.0 x2 |
| Network | 2x integrated gigabit network ports (load balancing / failover / sideband support) |
| I/O Ports | 1x VGA; rear 2x USB2.0 + 2x USB3.0; front 2x USB2.0; 2x RJ45 network |
| BMC Management | Integrated remote management module (dedicated remote management port) |
| Power | Standard 600W, 100-240V AC 50-60 Hz; optional redundant power / DC power / BBP backup battery |
| Environment | Operating -5°C ~ 45°C; non-operating -20°C ~ 70°C |
| Operating Systems | Windows 7/8.1/10 & Server 2008R2/2012R2; RHEL; SLES; Fedora; Ubuntu; CentOS; Xen & KVM; Yocto; FreeBSD |
| Physical Dimensions | 660 mm D x 430 mm W x 88 mm H |
| SKU | 0102002 |
| Warranty | - |
| Lead time | - |
Applications
Built for Real Business Workloads
Use this platform as part of a complete enterprise AI infrastructure solution.
AI Training and Inference
A high-performance compute node supporting private model training, inference and concurrent workloads.
Contact our team →Private Compute Infrastructure
Serves as the compute foundation of enterprise data centers for virtualization and hyper-converged scenarios.
Contact our team →HPC and Data-Intensive Workloads
High-throughput I/O and low-latency interconnect for scientific computing, engineering simulation and data analytics.
Contact our team →Deployment
A Clear Deployment Path
Move from requirement discovery to a validated configuration and supported delivery.
Requirements and Specification Review
Confirm key parameters such as compute selection, power consumption, storage and facility environment.
Configuration and Compatibility Validation
Validate PCIe topology, thermal airflow and full-load system stability.
Delivery and Technical Support
Provide factory test reports, environment pre-installation and full lifecycle technical support.
Resources
Project Resources
Request the current documents for the exact configuration your team is evaluating.
Product Datasheet
Review detailed technical specifications, dimensions and interface definitions.
Contact our team →Installation and Configuration Guide
Best practices for rack mounting, cabling and data center deployment.
Contact our team →Technical Consulting
Discuss customized solutions with TF NEW senior hardware engineers.
Contact our team →REQUEST A QUOTE
Get a Configuration and Quote for the S327Q3 Server
Tell us about your required configuration scale and deployment timeline, and we will provide professional advice and a formal quotation.
