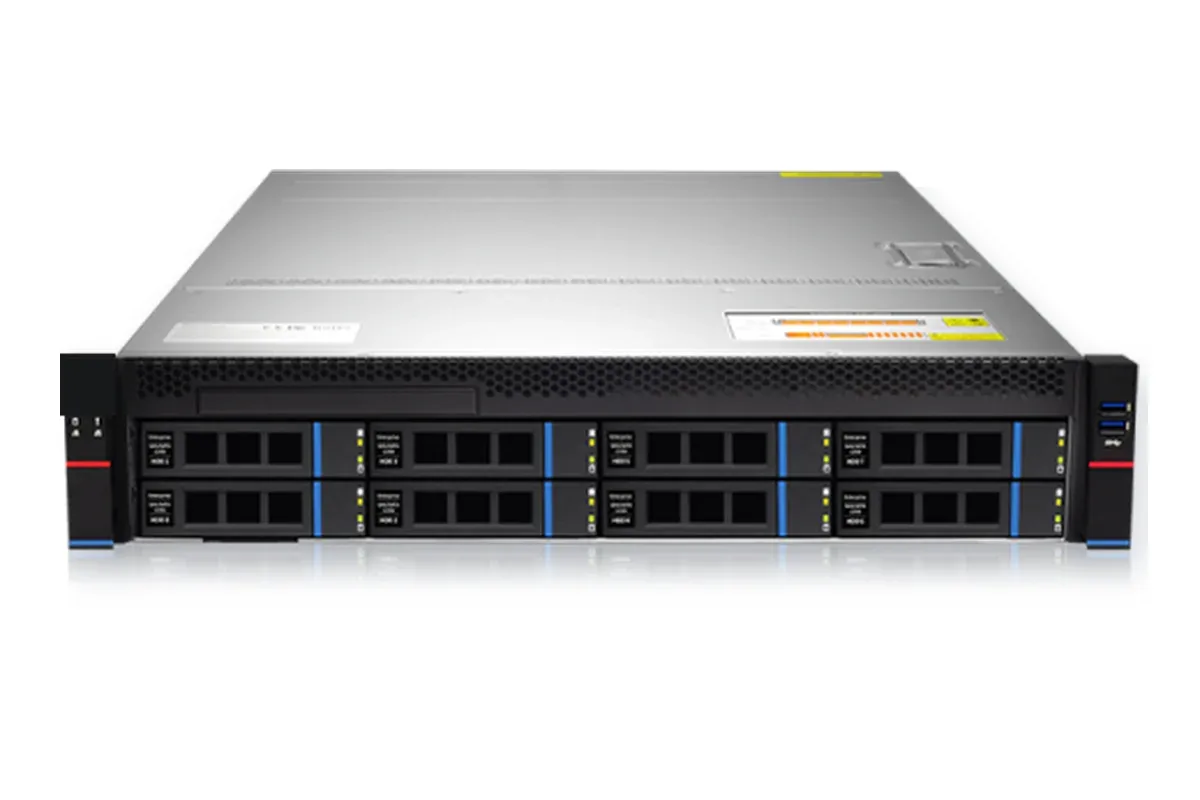

TFNEW ASR201-S08R/-NV 2U AMD Server
Model: ASR201-S08R/-NV · SKU: 0603024
2U single-socket AMD server supporting EPYC 7003 processors, 16 DDR4 slots, eight front SAS/SATA/NVMe hot-swap bays and flexible PCIe expansion.
Reference configuration
Integration
Fits your environment
Support
Selection & delivery
WHY THIS PRODUCT
TFNEW ASR201-S08R/-NV 2U AMD Server
2U single-socket AMD server supporting EPYC 7003 processors, 16 DDR4 slots, eight front SAS/SATA/NVMe hot-swap bays and flexible PCIe expansion.
Compute Performance
1 x AMD EPYC 7003 processor; compatible with EPYC 7002 and 7001
Storage and Expansion
8 front hot-swappable 3.5/2.5-inch SAS/SATA/NVMe drives; optional 2 rear 2.5-inch drives; Up to 10 PCIe slots, depending on riser configuration
Redundant Power
550/800/1300/1600/2200 W redundant power options
Specifications
| Model | ASR201-S08R/-NV |
|---|---|
| Form Factor | 2U rackmount server |
| Processor | 1 x AMD EPYC 7003 processor; compatible with EPYC 7002 and 7001 |
| GPU | PCIe expansion supports accelerator cards according to project configuration |
| Memory | 16 DDR4 slots; 2400/2666/2933 MHz |
| Storage | 8 front hot-swappable 3.5/2.5-inch SAS/SATA/NVMe drives; optional 2 rear 2.5-inch drives |
| Network | 2 x onboard 1GbE RJ45; 1 dedicated management RJ45 |
| I/O Interfaces | Front: 2 x USB 3.0; rear: VGA, serial, 2 x USB 3.0, management and 2 x RJ45 |
| Expansion | Up to 10 PCIe slots, depending on riser configuration |
| Power | 550/800/1300/1600/2200 W redundant power options |
| Dimensions | 695 x 433.4 x 87.6 mm (D x W x H) |
| Applications | Cloud computing, virtualization, big-data processing, enterprise applications and distributed storage |
| SKU | 0603024 |
| Warranty | - |
| Lead Time | - |
| SKU | 0603024 |
| Warranty | - |
| Lead time | - |
Applications
Applications
Cloud computing, virtualization, big-data processing, enterprise applications and distributed storage
AI and Data Processing
Cloud computing, virtualization, big-data processing, enterprise applications and distributed storage
Contact our team →Deployment
Deployment
Confirm CPU, expansion cards, power and facility requirements against the project configuration.
Requirements Review
Confirm CPU, memory, storage and expansion needs.
Compatibility Check
Review network, power and cooling conditions.
Delivery and Testing
Confirm the configuration and test under load before delivery.
Resources
Resources
Configuration-specific documentation is available on request.
REQUEST A QUOTE
Request a ASR201-S08R/-NV Configuration and Quote
Share target configuration, quantity and deployment conditions so our team can confirm specifications and pricing.
